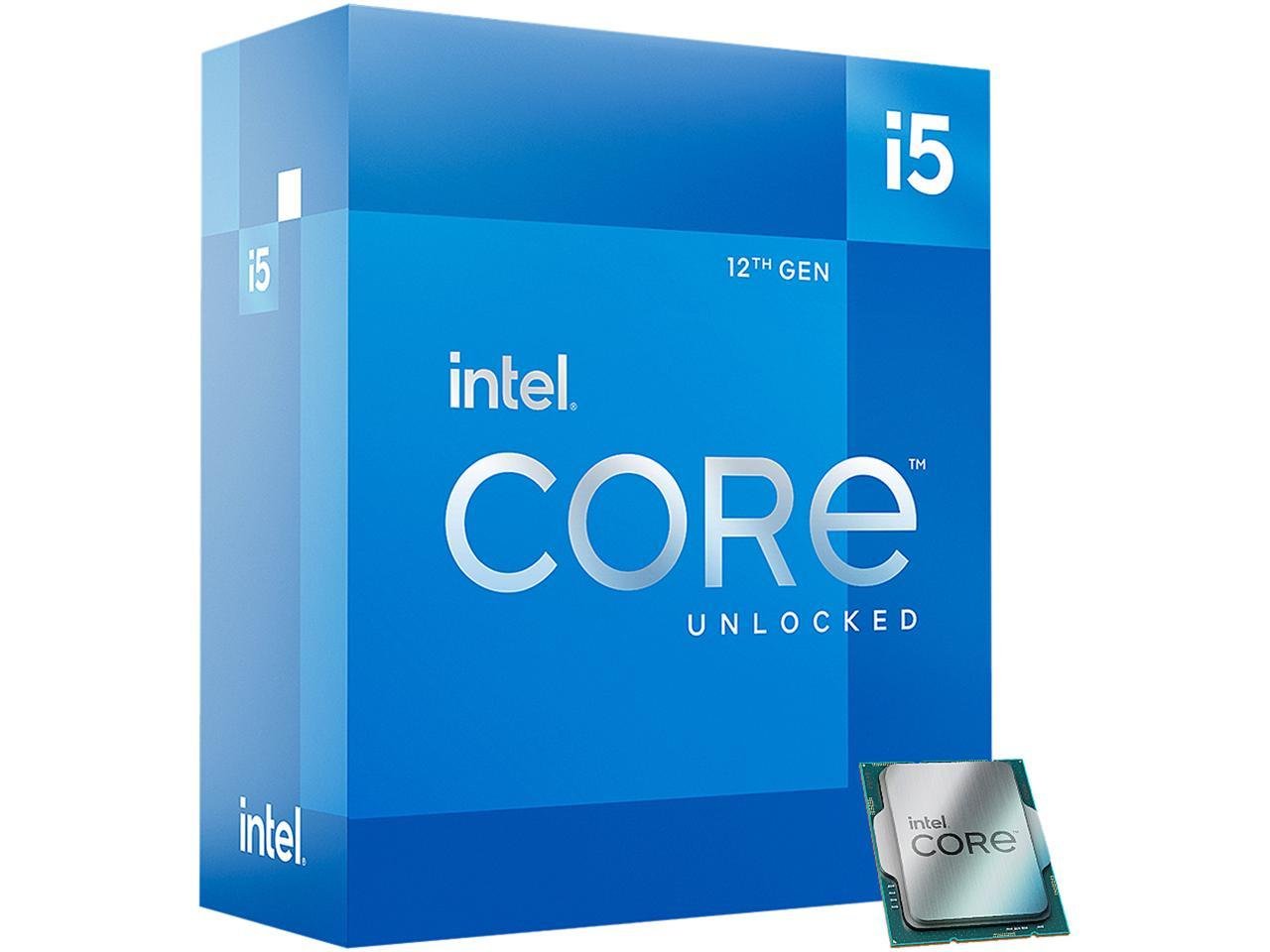

Intel Core i5-12600K 12th Gen Alder Lake Processor BX8071512600K

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i5-12600K 3.7 GHz 10-Core LGA 1700 Processor into your desktop computer system. Built using a Hybrid Core architecture with the Intel 7 process, this 12th generation desktop processor‰Ûªs 10 cores combine the performance of four Efficient-cores and six 3.7 GHz Performance-cores. The low-voltage Efficient-cores handle background tasks for multitasking while the Performance-cores provide speed for demanding applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time to maximize performance. Additionally, this processor has a 4.9 GHz Performance-core Turbo Boost 2.0 frequency with 20MB of cache for fast and reliable performance. The Core i5-12600K also includes support for up to PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of demanding applications. You can overclock this processor for even greater performance.

The Core i5-12600K features integrated Intel UHD 770 Graphics. Please note that a thermal solution NOT is included. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.

Hybrid Core Design
Background tasks are handled by the processor‰Ûªs Efficient-cores for multitasking while the Performance-cores provide the speed to handle high-end games and demanding applications.

Intel Thread Director
The Intel Thread Director is built into the CPU‰Ûªs cores, working with the operating system to ensure each of the 16 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.

Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.

Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Specification :

General
CPU Model Intel Core i5-12600K (12th Gen)
CPU Socket LGA 1700
Manufacturing Process 10 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 5.0)
4 (Revision 4.0)
Unlocked Yes
Performance
Number of Cores 10 (6 x P-Cores + 4 x E-Cores)
Number of Threads 16
Base Clock Speed P-Core: 3.7 GHz
E-Core: 2.8 GHz
Maximum Boost Speed P-Core Turbo: 4.9 GHz
E-Core Turbo: 3.6 GHz
L3 Cache 20 MB
Memory Support
Maximum Capacity 128 GB
Memory Support DDR4 3200 MHz
DDR5 4800 MHz
ECC Memory No
Channel Architecture Dual Channel
Maximum Memory Bandwidth 76.8 GB/s
Optane Memory Support Yes
Power
Thermal Design Power (TDP) 125 W
Included Thermal Solution None
Maximum Temperature 212å¡F / 100å¡C
Thermal Monitoring Technologies Yes
Technology
AES Support Yes
Extension AVX 2.0, AVX-512, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT)
DMI DMI4 (16 GT/s)
vPro Support Yes
Performance Technologies Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, Intel Thread Director, SpeedShift, Stable Image Platform Program, Turbo Boost 2.0
Security Technologies Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Integrated Graphics
Graphics Chipset Intel UHD Graphics 770
Maximum Resolution Support 7680 x 4320 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 4
Output Support DisplayPort, HDMI
Base Clock Speed 300 MHz
Maximum Boost Speed 1.45 GHz
Packaging Info
Package Weight 0.2 lb
Box Dimensions (LxWxH) 4.6 x 4.5 x 1.8‰Û_
